PACS AdministrationTool.

A browser-based ops console for PACS administrators — Interface Manager, Archive & QC, modality DICOM traffic logs, and a full diagnostics console in one place.

Launch admin toolWorklistHL7 Message AnalyzerFHIR Message Analyzer

What is this?

This is the operations side of the imaging environment: not the reading worklist, but the systems that keep studies flowing. Monitor HL7 / FHIR / DICOM traffic (including per-modality C-STORE, C-FIND, C-MOVE, and MPPS with patient context), free a full archive volume, correct a demographic hold, verify a scanner with Ping or C-ECHO, and work through realistic troubleshooting scenarios — the same faults you see in production.

See it in action

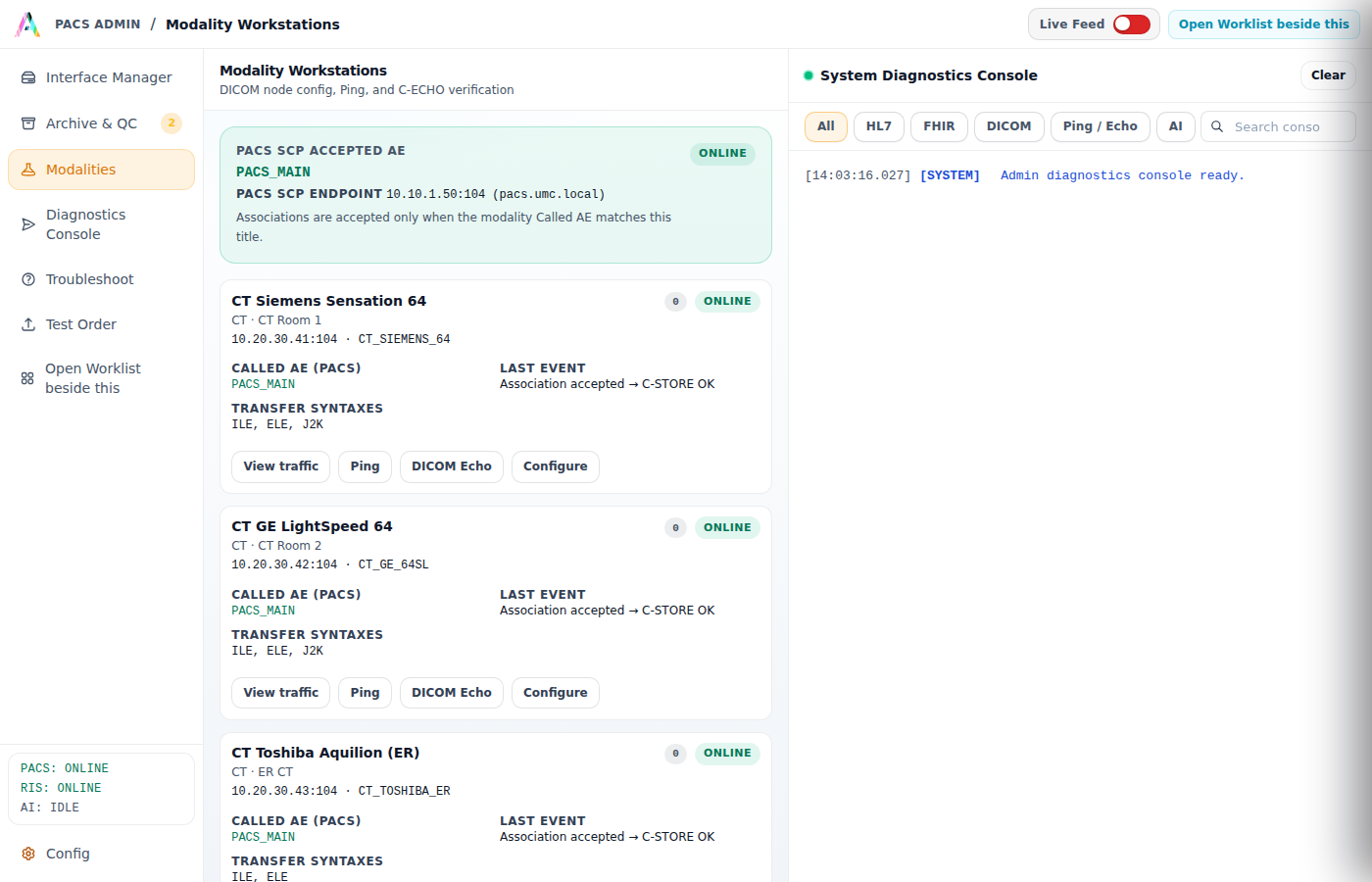

Modality Workstations — AE titles, transfer syntaxes, and one-click Ping / DICOM Echo.

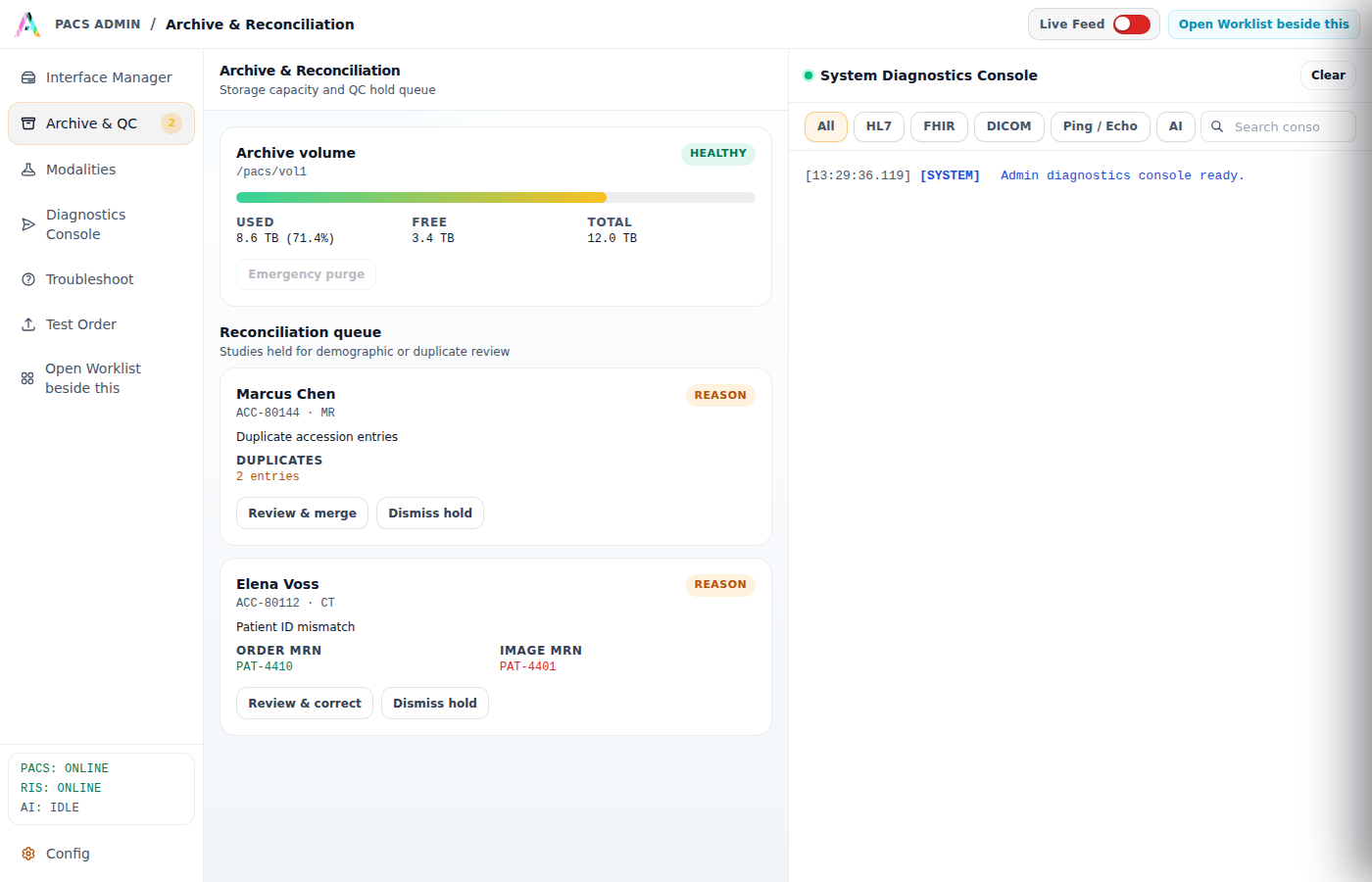

Archive & Reconciliation — storage capacity and a QC hold queue.

Features

  • Six simulated interface channels — HL7, FHIR, DICOM, AI — with live status and queue depth
  • Admin actions per channel — restart, flush, replay order, reprocess message
  • Watch archive storage climb toward Out of Resources
  • Run an emergency purge to free capacity
  • Clear reconciliation holds — MRN mismatches, duplicates, sync errors
  • Configure DICOM nodes — AE titles, transfer syntaxes, PDU size
  • Ping hosts and run C-ECHO against modality workstations
  • Per-station traffic log for C-STORE, C-FIND, C-MOVE, and MPPS
  • Traffic log shows name, MRN, and accession, with a payload Inspect view
  • Fix a wrong Called AE or re-send an incomplete series
  • Full diagnostics console with HL7, FHIR, DICOM, Ping/Echo, and AI filters
  • Message inspector surfaces patient demographics on DICOM lines
  • Realistic faults injected into the console for you to diagnose and fix
  • Fix faults directly in Interface Manager, Archive & QC, or Modalities
  • Shares a local demo database with the Worklist tool — see the clinical impact side by side
  • HL7 v2 ORM / ORU / QBP / RSP message support
  • FHIR R4 external records
  • Charset and ACK troubleshooting scenarios

Built around integration standards

HL7 v2 ORM / ORU / QBP / RSPFHIR R4 external recordsDICOM C-STORE / C-FIND / C-MOVE / MPPSArchive capacity & QC holdsModality traffic log / Ping / re-sendCharset & ACK troubleshooting

Questions

What is the PACS Admin tool?
A browser ops console for PACS administrators: Interface Manager, Archive & QC, modality DICOM traffic, and a diagnostics console in one place.
Is this connected to a real archive?
No. It is a simulation with synthetic demo data. Pair it with the Worklist tool to see how admin actions affect a reading queue.
Does it store real patient information?
Synthetic demo data only. Nothing is uploaded or stored on a server. The tool runs entirely in your browser.

Ready to explore?

Runs entirely in your browser. Pair it with the Worklist tool to see how admin actions affect the clinical worklist.

Launch admin tool

Synthetic demo data only. No real patient information is used or stored on a server.
